Electric Scooter Controller

CT-301a9
CT-301A9
Electric Scooter
Controller
CT-301A9 24 volt controller

Wireing





Rated Voltage:24V
HAL Speed Adjust 1-4V
Rated Current 10.5A
Static Current 10 mA
Conversion Efficency: 95%
Maximum Current 29A
Under-voltage Protection: 20.5V
Motor: Type Brush 24V<301V
Usable Brake Handle
METERS:Motor Voltage, Speedometer
Usable Power Indicator
Brake Indicator
Suitable for 3A 24V Charge
88x50x35mm







MOTOR
Motor

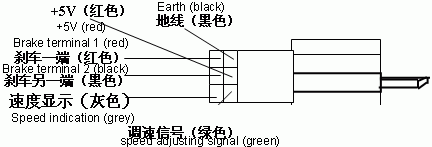

Brake , Throttle and Speed Indicator

6 Pin
          connection throttle / brake connection


LOCK

Lock Key switch
          connection


CHARGER

Charger

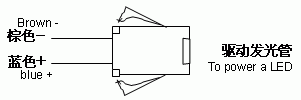

POWER INDICATOR

Power indicator

TAIL LIGHT

Tail Light connection
