How 110cc  CDI Pick-up Works

flywheel position sensor


CDI

  E Pick-up

For Honda copy

50-125cc 5 Pin
CDI
110cc CDI

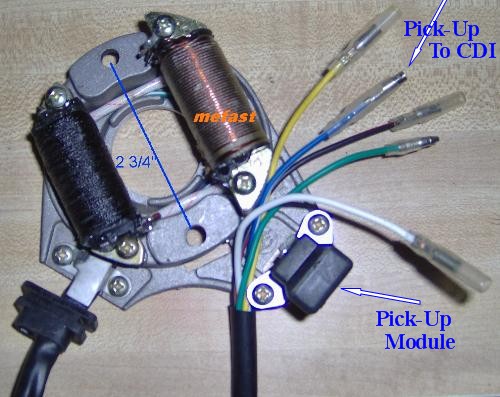

Pick-up module( see picture on right)  receives magnetic pulse signal from flywheel
Signal is tranfered to CDI to thru E
When CDI receives signal current is released thru A
Test Pick-UP
Set meter to ohms (continuity)
+ Pos probe to E - probe to ground
When engine spins  pulsing continuity will be read

CDI Pick-up Flywheel position sensor







Note: The pick-up module contains a magnet that can be damaged if contact is made




with flywheel.
