Test Magneto Resistance

Ohm test fire coil

Check manufacture specs for resistance readings.
Below are two examples.
Test Magneto

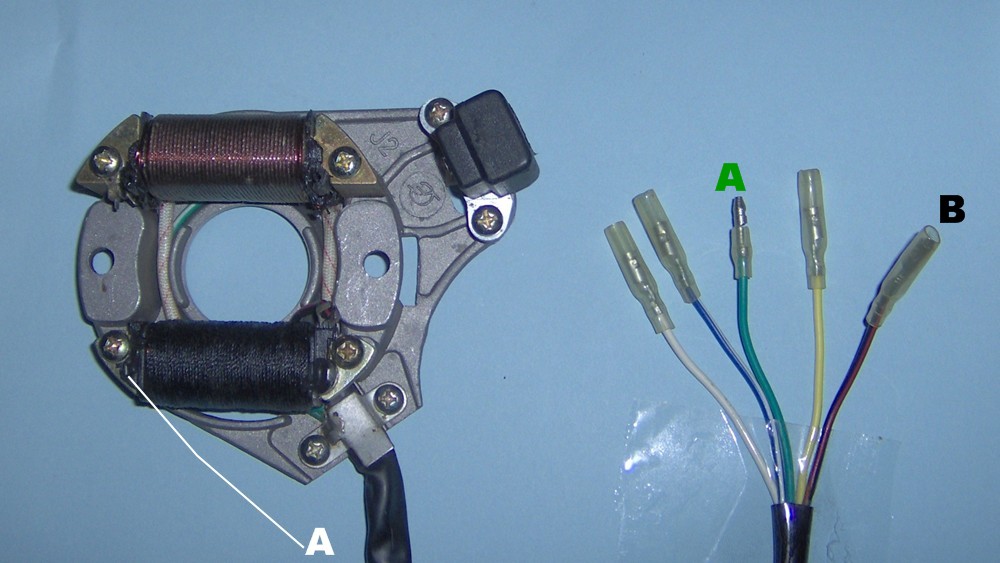

Example 1
Single fire coil
Set meter to Ohms
Place probes in wires A and B
 .32-.42 Ohms reading is satisfactory.

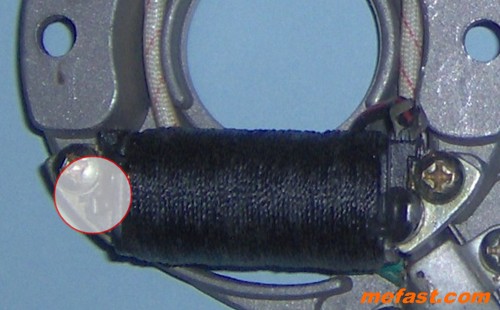

Below enlarged view
 Shows start of coil winding (Green wire attaches here)
Red shows start of coil winding


Example 2
Series double fire coils for single cylinder engine
Check coils as in first example.
 read .49-.53 ok
read 0 bad

Magneto fire test


Test Trigger Coil

Disconnect trigger wire
Set meter to continuity.
Attach a probe to the wire coming from the trigger coil.
Find a good ground for the other probe.

A field is created in the crankshaft position sensor when the flywheel magnet passes over it.
This pulse will show up as a meter bounce when the engine is turned over.
