Engine will not turn over

 Four stroke engine troubleshoot

Motorcycle engine


Most engines supplied on products we distribute use kick start, electric start or both.

Some engines will not turn over

Unless transmission is in neutral position
  Unless brake or clutch lever is engauged
Cut-off switch is in off possition
Pull away tether is plugged in (for ATV)

For Kick start type engines

If the kick start lever seems to be jammed and will not depress

Cause
Brakes locked
Transmission in gear ( not in neutral position)
Damaged kick start gears
 Engine seized

Electric start engine

Some electric starters spline into a geared starter clutch gears others have a sprocket that drives a chain.
Electric starter with geared starter clutch


Chain drive starters
Chain drive starters are equiped with a sprocket that drives a chain which turns a starter clutch gear (one way gear or freewheel gear) attached to the crank shaft.

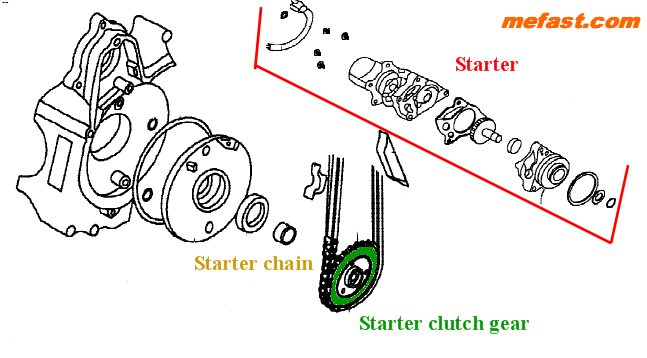

Electric starter diagram
 110cc engine diagram shows starter gear clutch ,starter chain, electric starter

Both types use the same electrical system
