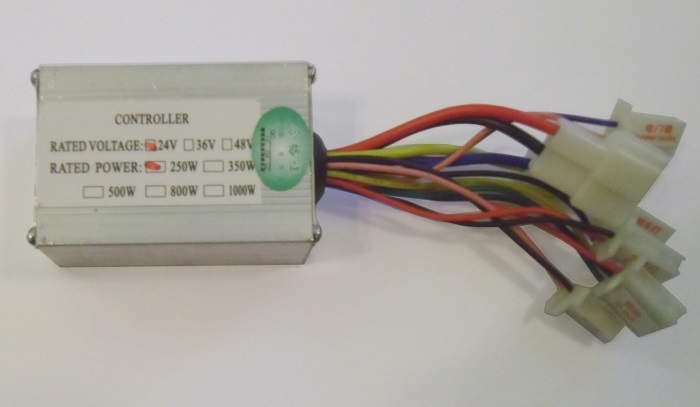

We have found JC-24A to be the best general replacement controller for hall effect systems equipped with 180 to 300 watt motors.
This controller will not work properly in systems configured with direct negative motor return to battery.
( Blue and white output wires must both connect to motor)

Description
Provides 0 to 24VDC for 24VDC 100 - 300 Watt motors using hall effect speed controller.
Basic circuit controls power to motor and power disable to motor via brake circuit
Routs 24v charging input
STD Female 227IEC 02 (RV)450/750V Output Connection
STD Male Battery  Input  Connection
Built-in fuse protected ignition/ energize circuit

	ONBOARD	LIMITATION	Connector
Battery Input 21-26VDC	Yes		Female (+R-B)
Controller Output 0-24v	Yes	250 Watt	Male (BW)
hall Speed Control Input (Std 4.3VDC output )	Yes		Male (3 wire RBY)
Brake Disable	Yes		Male (BY)
Charge control circuit Trickle charge only.	Yes	No quick charge capability. Recommended charger 100-240V 50/60A Output: DC 24V 1.8A	Male (+R-B)
Brake Light Output	Yes		Male (+R-B)
Headlight  (Pilot Lamp) output	Yes		Male (RB)
Brake light output Stop Light	Yes		RB
Under voltage Protection		NO
Turn Signal Control		NO
24V Accessory Take-off		NO
Voltmeter output (no instrument output circuit)		NO

INSTALLATION

This part should be installed by a competent technician.
