Fully-Automatic Transmission

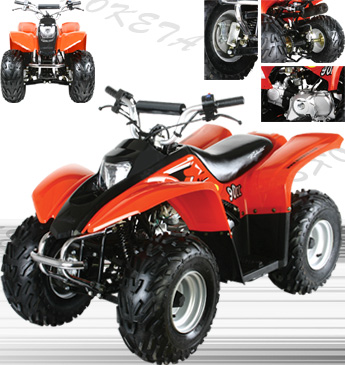

ATV-19(90cc)
ATV-19


Engine Type:90cc 4-Stroke , Air Cooled Single Cylinder
Transmission System: Chain Drive Fully-Automatic
Bore x Stroke (mm): 41X37
Compression Ratio: 7.8 D1
Maximum Power (kw/r/min): 2.4/5900
Maximum Torque (N.m./rpm): 3.9/5500
Starter System: Electric Stater
Overall Length (mm): 1335
Overall Width (mm): 730
Overall Hight (mm): 780
Wheel Base (mm): 828
Front Track (mm): 530
Rear Track (mm): 530
Seat Hight (mm): 542
Ground Clearance (mm): Max.110
Rider Capacity : 1 person
Gross Weight(kg): 68
Dry Weight (kg): 90
Brake (Front/Rear): Drum/Disc
Tire, Front: AT16 D8 D7
Tire, Rear: AT16 D8 D7
Air pressure(front tyre) (kpa): 20
Air pressure(rear tyre)(kpa): 20
Ignition Type : C.D.I.
Fuel Tank Capacity (L): 3.2
Engine Oil Capacity (L): 0.6
Front Suspension : Double A-Arm
Rear Suspension: Single Swing
Parking Brake: Mechanical
Max. Speed(km/h): 23
Max. Load Capacity (kg): 45
Battery: 12v/5A
packing size(mm): 1310*750*630
