mefast

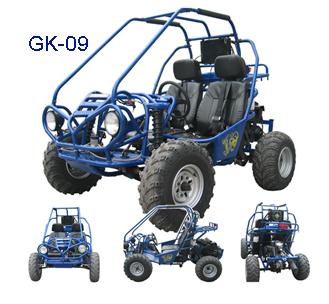

GK-09
GK-09(250cc)

OVERALL SIZE: 86.61x52.76x59.06"
WHEEL BASE: 57.48"
FRONT TREAD: 45.67"
REAR TREAD:39.37"
ENGINE: 250CC Single cylinder,4stroke,water-cooling
BORE x STROKE (mm): 72x60
DISPLACEMENT:244ml
COMPRESSION RATIO:10:1
MAX POWER(KW/rpm):12.5W/7500rpm
MAX TORQUE (N.M/(r/min):17.6/5500N.m/r/min
STARTING:Electrical start
IGNITION:CDI
LUBRICATION:Pressure, splash combined type
TRANSMISSION TYPE:Chain
SPARK PLUG:DPR5EA-9(NGC)
RIDER CAPACITY:2 persons or 150kg
FEUL TANK CAPACITY (L):9.5L
ENGINE OIL CAPACITY (L):850ml
GRADABILITY:20??
MAX SPEED: 50km/h
BATTERY: 12V14AH
FRONT LIGHT: 12V35X35W
TAIL LIGHT: 12V21W/5W
FUSE: 10A
REAR BRAKE: Hydraulic pressure / Foot control
F/R TIRE SIZE: Fr:AT 23X7-10/ Fr:AT 22X10-10
FRONT SUSPENSION:Single armed and unit suspension
N.W. /G.W.(Lbs): 660.79/682.82
